1T Industrial Ro Water Purifier Machine Membrane Softener Reverse
Osmosis Treatment Equipment Pure Water Machine
Production Description
Process flow:
Raw water tank-raw water pump-quartz sand filter-activated carbon
filter-scale inhibitor dosing device-security filter-high pressure
pump-RO reverse osmosis system-pure water tank
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Key advantages
Compared with pure water prepared by ion exchange, the cost of
chemicals consumed by resin regeneration, the labor cost and the
cost of waste water treatment caused by regeneration are reduced,
and the environmental pollution is reduced.The change of the
produced water quality caused by the fluctuation of the raw water
quality is slowed down, which is beneficial to the stability of the
water quality in production and has a positive effect on the
stability of the quality of desalted water products.
Maintance
The quartz sand or activated carbon in the sand filter or carbon
filter is recommended to be replaced once a year or so.4. The fine
filter shall be drained once a week. The PP filter element in the
fine filter is recommended to be replaced once a month or so.

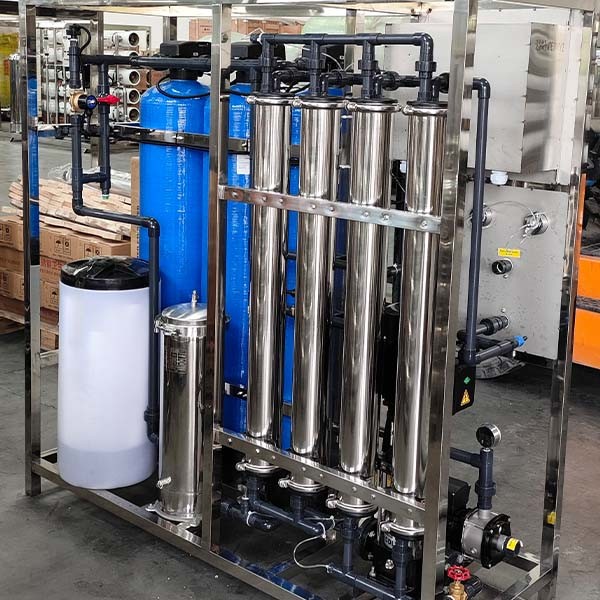

Product Display


|
